One-stop Custom CNC machining services
Add to Cart
| Equipment | Brand | Qty | Range | Accurany |
| Projector | Tianle | 1 | 100*200*300 | 0.005MM |
| CMM | Serein | 1 | 600*800*600 | 0.001MM |
| Height Gauge | TRMOS | 2 | 800 | 0.001MM |
| microcalliper | Mitutoyo | 6 | 0~50 | 0.001MM |
| caliber rule | Mitutoyo | 20 | 0~300 | 0.01MM |
| dial gauge | Mitutoyo | 5 | 0.001MM | |
| Pin gauge | Chuan liang | 1set | 0.5~30 | 0.01MM |
| R Guage | Chuan liang | 1 | 0.5~10 | 0.1MM |
| Plane | Lu yang | 3 | 1000*1500 | 0.005MM |
| Hardness tester | Luoshi | 1 | 0~90 | |
| Surface roughness tester | Mitutoyo | 1 | Ra0.05 | |
| Coating thickness tester | Mitutoyo | 1 | 0.002MM |

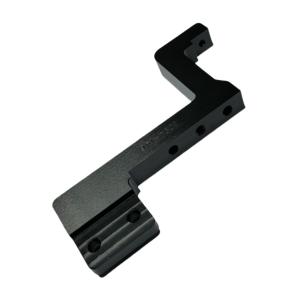

Precision CNC machining achieves the manufacturing of black engineered structural parts through three streamlined and logically linked steps:
1.Requirement Alignment for Post-Treatment Readiness
We lock in critical specifications—such as dimensional tolerances (±0.01mm) and surface roughness (Ra 0.8-3.2μm)—to ensure the part is prepared for subsequent black treatments (anodizing, black oxide, dyeing).
2.CNC Programming Adjustments for Blackening
Programs prioritize precision (±0.01mm) and surface quality: minimizing tool marks/burrs, controlling chip evacuation to prevent contamination, and using fillets on sharp edges. These adjustments ensure the machined surface serves as an ideal substrate for consistent blackening.
3.Material Selection Balancing Blackening and Performance
ISO-certified materials are chosen to balance both aspects:
| Equipments list | Brand | Qty | Working Range (mm) | Precision |
| CNC machines | Huaqun H-1580B | 2 | 1580 | 0.005mm |
| Qiaofeng VMC-1270 | 2 | 1270 | 0.005mm | |
| Qiaofeng VMC-850 -4 Axis | 12 | 850 | 0.005mm | |
| Joint 850 | 10 | 850 | 0.005mm | |
| (Takan) | 4 | 600 | 0.005mm | |
| FEELER 5 Axis | 4 | 850 | 0.005mm | |
| Milling Machine | Jie yong da | 10 | 760x330 | 0.01mm |
| Milling Machine | Bao Feng | 1 | 760x330 | 0.01mm |
| Lathe | Dalian | 2 | 600 | 0.01mm |
| N/C Turning | Tai Yu | 6 | 500x300 | 0.005mm |
| W/C | Xiongfeng | 6 | 500x300 | 0.005mm |
| W/C(Mid) | Xiongfeng | 1 | 500x300 | 0.005mm |
| Grinding Machine | Wanbang | 4 | 400x200 | 0.002mm |
| Laser Marking machine | 1 |
We work with Raw material
| Plastic | Metal | Grade |
| ABS | Aluminum Alloy | 2007/ 2017/5052 /6061/6082/6063/7075 ,.etc. |
| PC (Polycarbonate) | Brass&Copper | 3602 / H59 / H62 / C3600/C38500/,.etc. |
| PEEK | Stainless steel | SS 301,SS304,SS316L,SS400,SS430,etc |
| POM | Carbon Steel | A2,Q235,20#,45#.etc |
| PMMA (Acrylic) | Titanium Alloy | |
| PE | Magnesium alloy | |
| PVC | Zinc alloy | |
| Teflon | Tungsten Carbide | YG8,YG10 |
| Other special plastic | Other | Up on Customer’s request |
Finish and Surface Treatment
| Polishing & surface grinding | In house | Electro Plating | Contacted suppliers |
| Sandblasting & Bead blasting | In house | Anodizing | Contacted suppliers |
| Painting | In house | Flame/ Vacuum/Nitrided hardness | Contacted suppliers |
| Screen printing for mark | In house | Hot Galvanized | Contacted suppliers |
| Laser engraving | In house | Chemical Black & Black Oxide | Contacted suppliers |
| Powder coating | In house | Vacuum plating | Contacted suppliers |
Fast Lead Time and Safe Shipping:
1-2 weeks
Wooden case safe packing, Ship by Air or sea.
